6TH EDITION

AKTIEBOLAGET
L. M. ERICSSON & Co
STOCKHOLM

WORKS: 5, 15, 17 & 19 TULEGATAN, STOCKHOLM
OFFICE: 18 DÖBELNSGATAN, STOCKHOLM
TELEGRAPHIC ADDRESS: MIKROFON, STOCKHOLM
CODES USED: WESTERN UNION, A. B. C. 4TH AND 5TH EDITIONS,

LIEBERS AND A 1.



Branches:

Russia: Russische Actiengesellschaft L. M. Ericsson & Co.

Works and Office: 70 Gr. Sampsoniewsky Prosp. S:t Petersburg.
Telegraphic Address: Telefon, Petersburg.

England: The Brittish L. M. Ericsson Manufacturing Co. Ld.

Works: Beeston, Notts.
Office: Byron House, 82/85, Fleet Street, London E. C.
Telegraphic Address: Ericsson, London.

France: Société des Téléphones Ericsson

4, Rue Le Peletier, Paris.
Telegraphic Address: Télémikro, Paris.

U. S. A.: Ericsson Mfg. Co.

Works and Office: Military Road 121, Buffalo, N. Y.
Telegraphic Address: Mikrofon, Buffalo.

Mexico: Empresa de Teléfonos Ericsson S. A.

Office: 2a Calle de Victoria 53 y 55, Mexico D. F.
Telegraphic Address: Mikrofon, Mexiko.





Contents:
Code words for numbers
Old catalouge numbers & corresponding in this catalouge
Telephones: Section A: Type AB 100, AB 105, AB 120, AB 122, AB 130, AB 135, AB 140, AB 145, AB 160, AB 165, AB 210, AB 220, AB 230, AB 250, AB 500, AB 510, AB 520, AB 530, AB 650, AB 670, AB 1200, AB 1300, AB 2100, AB 2300, AB 2500, AB 2530, AB 5000, AB 5100, AB 6000, AB 6100, AB 6200, AB 6300, AB 6500.
AC 100, AC 110, AC 120, AC 130, AC 140, AC 200, AC 210, AC 300, AC 400, AC 500, AC 1000.
AD 100, AD 120, AD 125, AD 200, AD 250.
AE 200, AE 250.
AF 100, AF 200-231, AF 300, AF 340, AF 500.
Section B: BC 1100, BC 1200, BC 1300, BC 1301, BC 1400, BC 2000, BC 2050.
BD 100, BD 200.
Section C: CD 110, CD 120, CD 140, CD 170, CD 180, CD 540, CD 570, CD 1110, CD 1140, CD 2000.
CG 100, CG 300, CG 400, CG 1100, CG 1110.
CK 550, CK 650, CK 660, CK 670.
CL 500, CL 510, CL 600, CL 610.
CM 100
About this material.



TELEPHONE INSTRUMENTS

Code words for numbers
1 Ybad 16 Ydol 31 Yhal 46 Ylos 110 Ypas 375 Ysud
2 Ybef 17 Ydum 32 Yhem 47 Ylut 120 Ypet 400 Ysyf
3 Ybig 18 Ydyn 33 Yhin 48 Ylyv 130 Ypiv 425 Ytax
4 Yboll 19 Yfah 34 Yhop 49 Ymap 140 Ypox 450 Yteb
5 Ybuk 20 Yfek 35 Yhur 50 Ymer 150 Ypub 475 Ytic
6 Ybyl 21 Yfil 36 Yhys 55 Ymis 160 Ypyc 500 Ytod
7 Ycaf 22 Yfom 37 Ykam 60 Ymot 170 Yrat 550 Ytuf
8 Yceg 23 Yfun 38 Yken 65 Ymuv 180 Yrev 600 Ytyg
9 Ycih 24 Yfyk 39 Ykip 70 Ymyx 190 Yrix 650 Yvab
10 Ycok 25 Ygak 40 Ykor 75 Ynar 200 Yrob 700 Yvec
11 Ycul 26 Ygel 41 Ykus 80 Ynes 225 Yruc 750 Yvid
12 Ycym 27 Ygim 42 Ykyt 85 Ynit 250 Yryd 800 Yvof
13 Ydag 28 Ygon 43 Ylan 90 Ynov 275 Ysav 850 Yvug
14 Ydeh 29 Ygup 44 Ylep 95 Ynux 300 Ysex 900 Yvyh
15 Ydik 30 Ygyr 45 Ylir 100 Ynyb 325 Ysib 950 Yxae
       350 Ysoc 1000 Yxed

The words with four letters in the above table should be used together with the code words with six letters in this catalogue, for inst. Ydikabadyn = 15 instruments AB 140.



Table of old catalogue numbers and corresponding numbers in this catalogue
NO. 301 AB 210 NO. 320 AB 500 NO. 361 AB 250 NO. 395 AC 1000 NO. 441 AB 6000
        305 AB 100        321 AB 505         365 AB 2500         400 BC 2000         442 AB 6100
        306 AB 105        325 AD 100         366 CD 140         402 BC 2050         443 AB 6500
        310 AB 140         330 AD 200         370 AC 100         405 BC 1300         445 AB 5000
        311 AB 145         335 AD 250         375 AC 110         406 BC 1301         450 AF 210
        315 AB 220         340 AB 130         380 AC 210         408 BC 1400         455 AF 220
        316 AB 120         345 AB 530         381 AC 300         410 BC 1100         460 AF 300
        317 AB 122         346 AB 590         383 AC 310         415 BC 1200         465 AF 340
        318 AB 160         350 AB 650         385 AC 200         435 AF 100         855 AB 5100
        319 AB 165         355 AB 230         388 CG 1100         440 AF 200

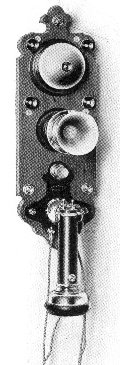

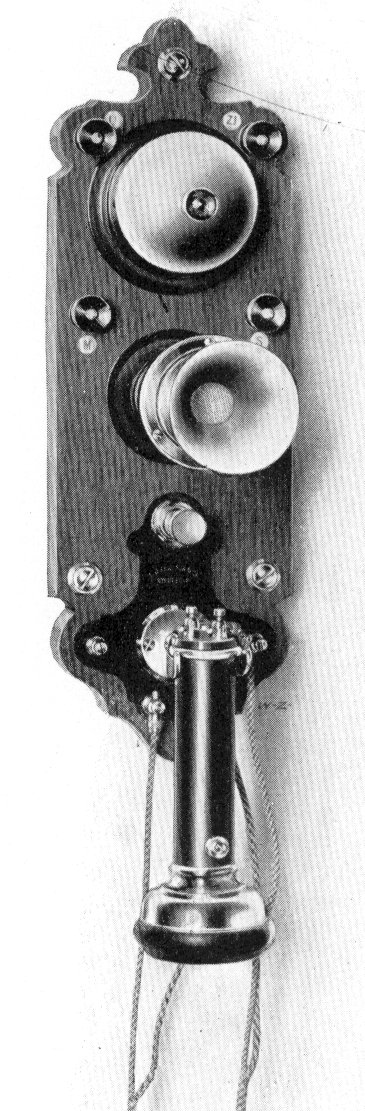

Type BC 1100

Battery ringing wall telephone

(Old Cat. No. 410)

Backboard polished walnut.
Transmitter RC 120 on arm RC 501.
Receiver RD 110 (Old Cat. No. 546) with cord RS 4300 (Old Cat. No. 2030) suspended on switch-hook.
Ringer 40 ohms resistance.
Height of Backboard: 345 mm.
Width of Backboard: 110 mm.
Weight: 1,6 kg.
Codeword: Batagi.

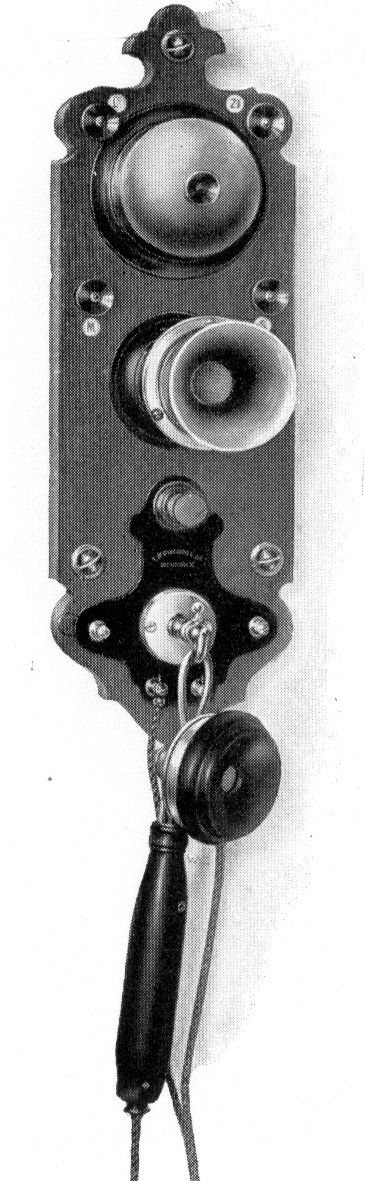

Type BC 1200

Battery ringing wall telephone

(Old Cat. No. 415)

Backboard polished walnut.
Transmitter RC 120 on arm RC 501.
Receiver RD 200 (Old Cat. No. 549) with cord RS 4700 (Old Cat. No. 2036), suspended on switch-hook.
Ringer 40 ohms resistance.
Height of Backboard: 345 mm.
Width of Backboard: 110 mm.
Weight: 1,5 kg.
Codeword: Batayl.

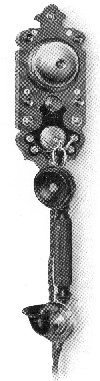

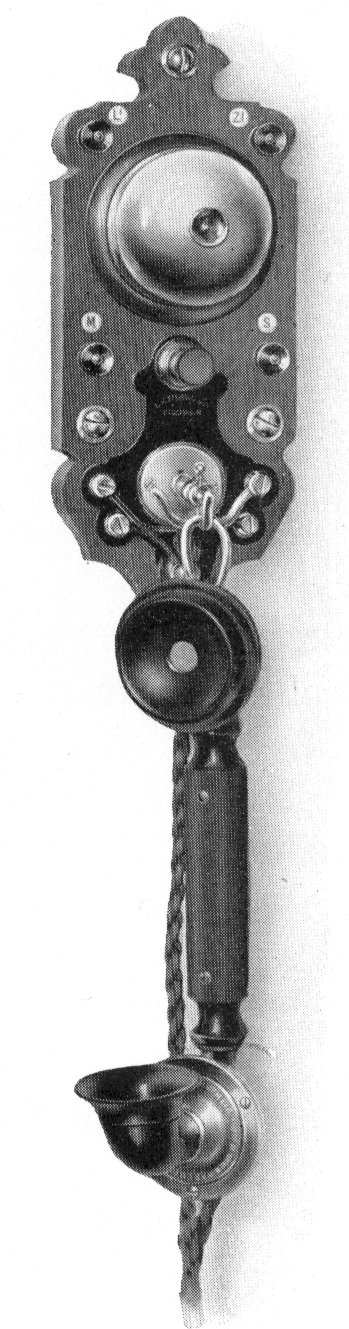

Type BC 1300-1301

Battery ringing wall telephones

Type BC 1300

(Old Cat. No. 405)

Backboard polished walnut. Micro-telephone RE 4000 (Old Cat. No. 532) with cord RS 6000, suspended on a switch-hook.
Ringer 40 ohms resistance.
Height of Backboard: 250 mm.
Width of Backboard: 100 mm.
Weight: 1,3 kg.
Codeword: Batbig.



Type BC 1301

(Old Cat. No. 406)

Backboard polished walnut.
Micro-telephone RE 6000
(Old Cat. No. 522) with cord RS 8001 (Old Cat. No. 2142) and switch in the handle suspended on a fixed hook.
Ringer 40 ohms resistance.
Weight of Backboard: 250 mm.
Width of Backboard: 100 mm.
Weight: 1,3 kg.
Codeword: Batbok.

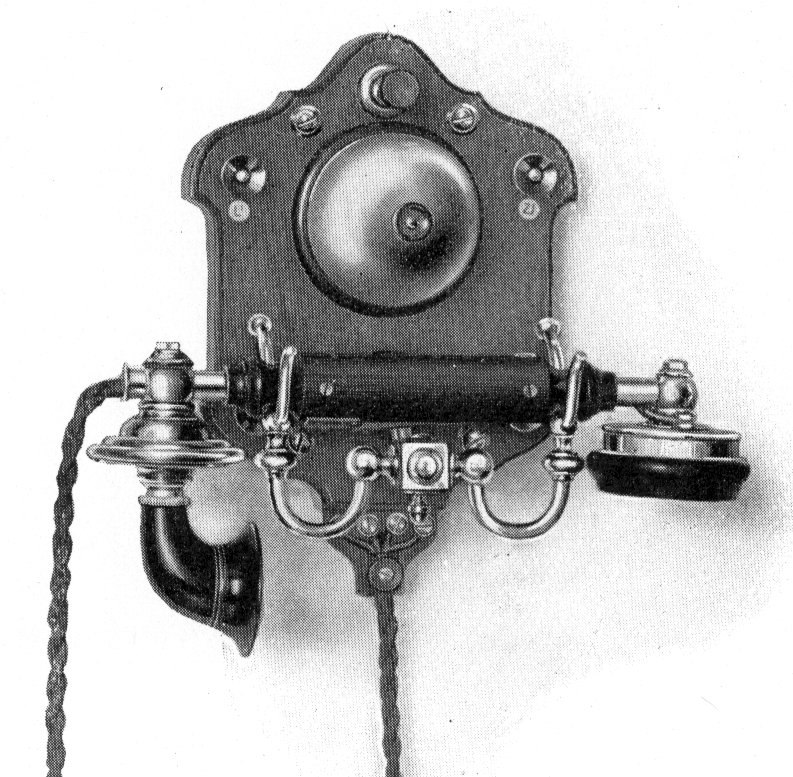

Type BC 1400

Battery ringing wall telephone

(Old Cat. No. 408)

Backboard polished walnut.
Micro-telephone RE 3500 (Old Cat. No. 523) with cord RS 8500 (Old Cat. No. 2182) and switch in the handle resting in a fixed cradle.
Ringer 40 ohms resistance.
Height of Backboard: 190 mm.
Width of Backboard: 155 mm.
Weight: 1,6 kg.
Codeword: Batefu.

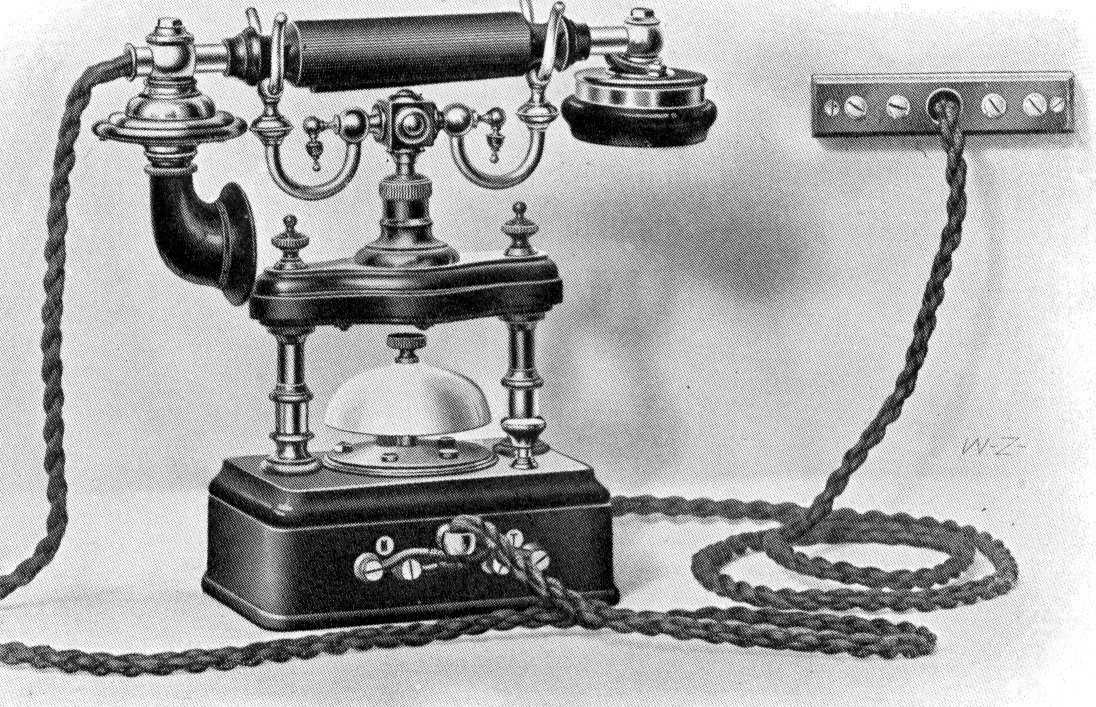

Type BC 2000

Battery ringing table telephone

(Old Cat. No. 400)

Framework polished walnut.
Micro-telephone RE 2002 (Old Cat. No. 520) with cord RS 7021 (Old Cat. No. 2252) and switch in the handle resting on a cradle switch, flexible cable, RS 9000 (Old Cat. No. 2084) and terminal block.
Ringer 40 ohms resistance.
Weight: 1,8 kg.
Codeword: Batfak.

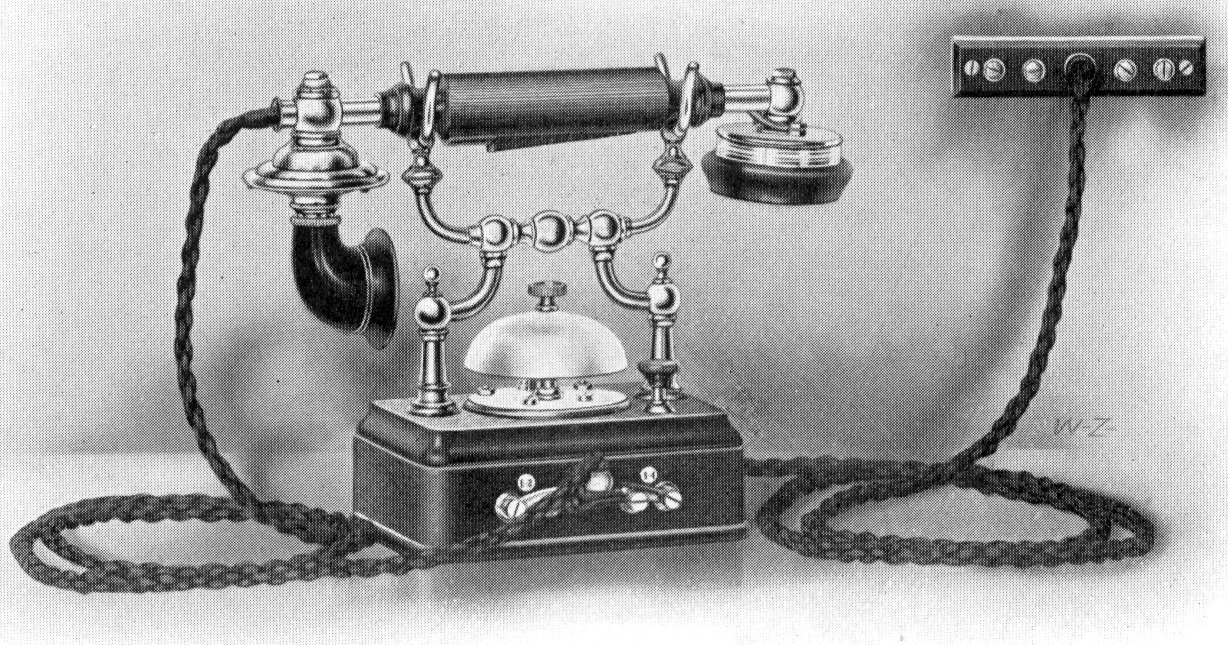

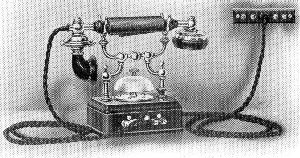

Type BC 2050

Battery ringing table telephone

(Old Cat. No. 402)

Framework polished walnut.
Micro-telephone RE 3000 (Old Cat. No. 525), with a switch in the handle, resting on a fixed cradle, with cord RS 8001 (Old Cat. No. 2142), flexible cable RS 9000 (Old Cat. No. 2084) and terminal block.
Ringer 40 ohms resistance.
Weight: 1,8 kg.
Codeword: Batfim.

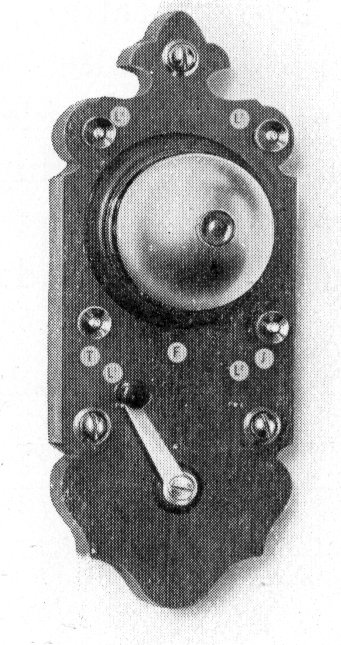

Type BD 100

Extension switch for 2 earth circuit lines
Battery Ringing System

This instrument consists of a polished walnut base on which are mounted a 3-way lever switch, and a ringer of 100 ohms resistance.
It is intended for use with any of our ordinary battery ringing telephones, and such a combination of switch and telephone can communicate with either of the two extension lines, depending upon the switch being in the left or right hand position.
A signal given by one of the extension lines will ring either the bell on the telephone or that on the extension switch, again depending upon the position of the switch.
The switch should normally be to the left or to the right, and a signal coming from one of the lines will then ring the intermediate station only and not the other extension line.
When the switch is in the central position, the 2 lines can communicate directly with each other.
Height of Backboard: 250 mm.
Width of Backboard: 100 mm.
Weight: 1,8 kg.
Codeword: Batkan.

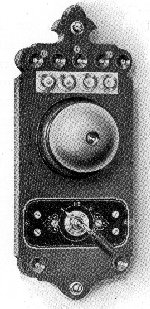

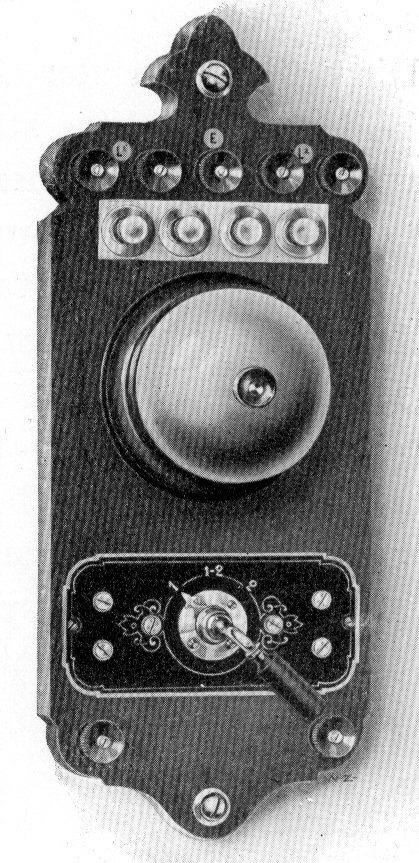

Type BD 200

Extension switch for 2 metallic circuit lines
Battery Ringing System

This extension switch consists of a polished wood base, on which are mounted a 3-way switch, and a ringer of 100 ohms resistance.
It is intended for use with any of our battery ringing telephones and such a combination of extension switch and telephone can communicate with either of the two extension lines depending upon the switch being in the right or left hand position.
Signals given by the extension lines will ring either the bell on the telephone, or that on the extension switch, again depending upon the position of the switch.
The switch should normally be to the left or to the right hand, and a signal coming from one of the lines will then ring the intermediate station only and not the other extension line.
When the switch is in the central position, the two extension lines can communicate directly with each other.
When any two of the above telephones are in communication with each other, their conversation cannot be overheard by the third.
This switch can be used for either 2 earth circuit lines, 2 metallic circuit lines, or for an earth circuit line and a metallic circuit line.
Height of Backboard: 340 mm.
Width of Backboard: 140 mm.
Weight: 1,6 kg.
Codeword: Batkor.



About this material

This is section B of the product catalogue 'Section A-C, 6th Edition Catalogue Telephone Instruments from Aktiebolaget L. M. Ericsson & Co, Stockholm '. The catalogue was printed 1911 by Wald. Zachrissons boktryckeri A.-B., Göteborg.

The scanning and word processing has been done by Tommy Sundgren (STSF).

Some pictures have Moiré interference that is hard to avoid due to the paper printing technique used. The text has been captured with Caere OmniPage OCR program.

Many thanks to the Telemuseum in Stockholm that kindly lent us the catalouge.
